BMC Helix Operations Management Connector

Summary

The Jitterbit Harmony BMC Helix Operations Management Connector provides an interface for entering user-provided input such as credentials to create an authenticated BMC Helix Operations Management connection. That connection provides the foundation to configure associated BMC Helix Operations Management activities that interact with the connection.

Supported API Versions and Prerequisites

The BMC Helix Operations Management connector uses the BMC Helix Operations Management REST API. For more information on the schema fields, see https://docs.bmc.com/docs/display/BHOM/Event+classes.

The BMC Helix Operations Management connector requires the use of an agent version 10.1 or higher. These agent versions automatically download the latest version of the connector when required.

Connector Overview

This connector is used to first configure a BMC Helix Operations Management connection, establishing access to BMC Helix Operations Management, and then used to configure one or more BMC Helix Operations Management activities associated with that connection as a source or target within an operation:

  • Get Event: Finds an object at a BMC Helix Operations Management endpoint and is intended to be used as a source in an operation.

  • Search Events: Finds an object at a BMC Helix Operations Management endpoint and is intended to be used as a source in an operation.

  • Create Event: Places an object into a BMC Helix Operations Management endpoint and is intended to be used as a target in an operation.

Together, a specific BMC Helix Operations Management connection and its activities are referred to as a BMC Helix Operations Management endpoint.

Accessing the Connector

The BMC Helix Operations Management connector is accessed from the Connectivity tab of the design component palette by using the Show dropdown to filter on Connectors.

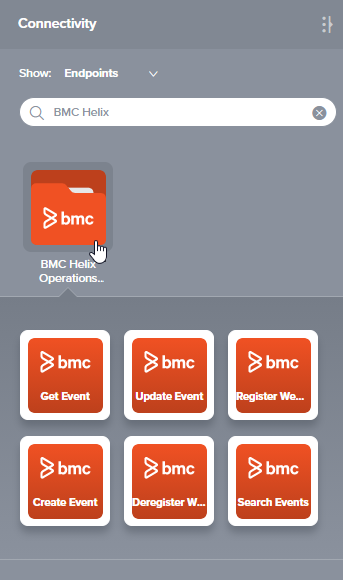

Once a connection is configured, activities associated with the endpoint are available by using the Show dropdown to filter on Endpoints and then clicking the BMC Helix Operations Management connection block:

Activities
